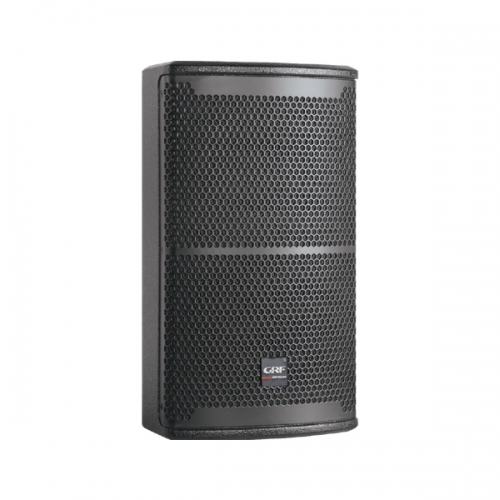

Model |
AF8 |
| Frequency Response | 65Hz~18KHz(±3dB) |
| Component | LF:1x8"(2"voice coil), HF:1x1"(1.75"voice coil) |
|
Rated Power |
100W AES |
| Recommended Amplifier | 200W into 8ohms |
| Sensitivity | 95dB |
| Maximum SPL | 118dB/1m |
| Nominal Impedance | 8 ohms |
| Dispersion | 90°Hx45°V |
| Enclosure | Birch plywood |
| Finish | Black ,scrath paint |
| Grill | Steel grill with black foam |
| Connector | 2xNeutrik NL 4 |
| Dimension(HWD) | 432x238x280mm |
| N.W. | 10.8Kg |
