Model |

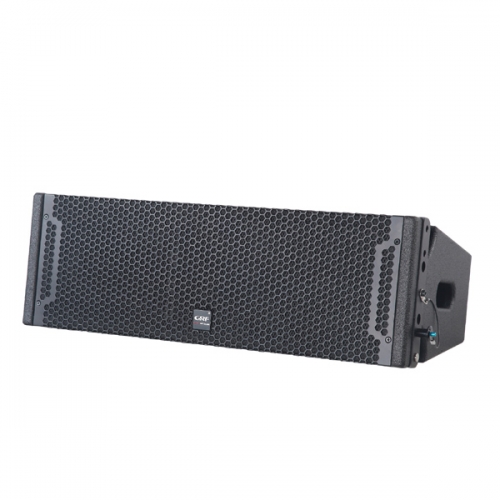

TT5206 |
| Frequency Response | 100Hz~18KHz |
| Component | LF:2x6.5"(1.4"voice coil), HF:1x1.75"(1"voice coil) |
|
Rated Power |
200W AES |
| Recommended Amplifier | 400W into 8ohms |
| Sensitivity | 94dB |
| Maximum SPL | 120dB/1m |
| Nominal Impedance | 16 ohms |
| Dispersion | 90°Hx10°V |
| Enclosure | Birch plywood |
| Finish | Black ,scrath paint |
| Grill | Steel grill with black foam |
| Enclosure protection class | IP45（Optional） |
| Connector | 2xNeutrik NL 4 |
| Dimension(HWD) | 200x600x285mm |
| N.W. | 14.2kg |
