Model |

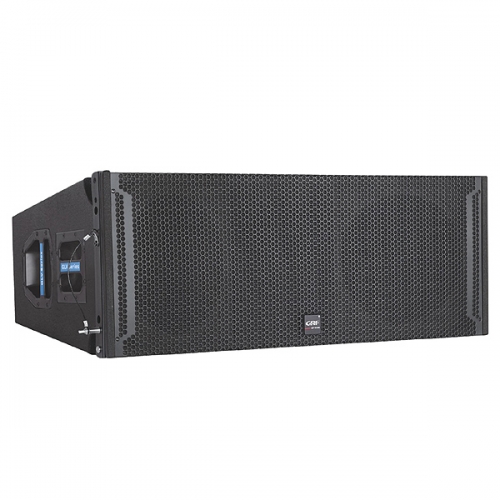

TT5212 |
| Frequency Response | HF：60Hz~18KHz MF:200Hz~2KHz LF:60Hz~500Hz |
| Component | HF:2x1.5"(3"voice coil), MF:1x10"(3"voice coil) LF:2x12"(4"voice coil), |
|
Rated Power |
HF：150W AES MF：300W AES LF：1000W AES |
| Recommended Amplifier | Three-way power amplifier |
| Sensitivity | HF：105dB MF：99dB LF：96dB |
| Maximum SPL | 129dB |
| Nominal Impedance | 8 ohms |
| Dispersion | 120°Hx10°V |
| Crossover | 400H;2KHz |
| Enclosure | Birch plywood |
| Finish | Black ,scrath paint |
| Grill | Steel grill with black foam |
| Enclosure protection class | IP45（Optional） |
| Connector | 2xNeutrik NL 8 |
| Dimension(HWD) | 358x950x573mm |
| N.W. | 53kg |
